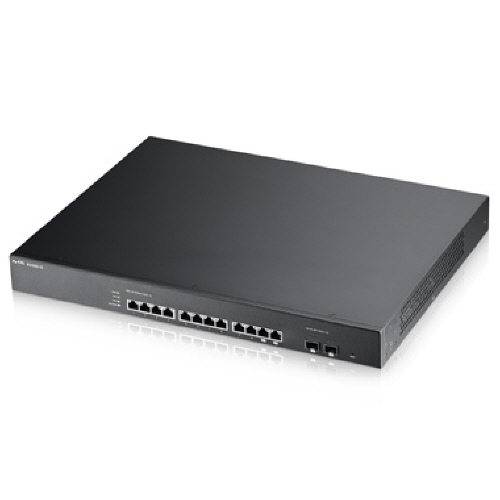

ZyXEL 자이젤 [XS1920-12] 10G 12포트 12port + 10G SFP+ 2 Slot COMBO //10G 웹관리형 스위치 허브 GbE Smart Web Managed L2 SWITCH
소비자가 :
4,500,000
원
판매가격 :
3,600,000원
수량
EA
XS1920-12 데이타 시트
XS1920-12 유저 가이드
Model
XS1920-12
Product name
12-port 10GbE Smart Managed Switch
Switch class
Smart Managed
Port Density
Total port count
12
1000/10GBASE-T
10
10 Gigabit combo (SFP/RJ-45)
2
Performance
Switching capacity (Gbps)
240
Forwarding rate (Mpps)
178.6
Packet buffer (byte)
2 M
MAC address table
16 K
Power
Input
100 - 240 V AC, 50/60 Hz
Max. power consumption (watt)
94.1
Physical Specifications
Item
Dimensions (WxDxH)(mm/in.)
440 x 330 x 44.5/17.32 x 12.99 x 1.75
Weight (Kg/lb.)
4.205/9.27
Packing
Dimensions (WxDxH)(mm/in.)
583 x 451 x 98/22.95 x 17.76 x 3.86
Weight (kg/lb.)
5.683/12.53
Included accessories
Power cord
Rack mounting kit
Environmental Specifications
Operating
Temperature
0°C to 50°C/32°F to 122°F
Humidity
10% to 90% (non-condensing)
Storage
Temperature
-40°C to 70°C/-40°F to 158°F
Humidity
10% to 95% (non-condensing)
MTBF (hr)
839624.71
Heat dissipation (BTU/hr)
320.89
Acoustic noise (dBA)
48.8

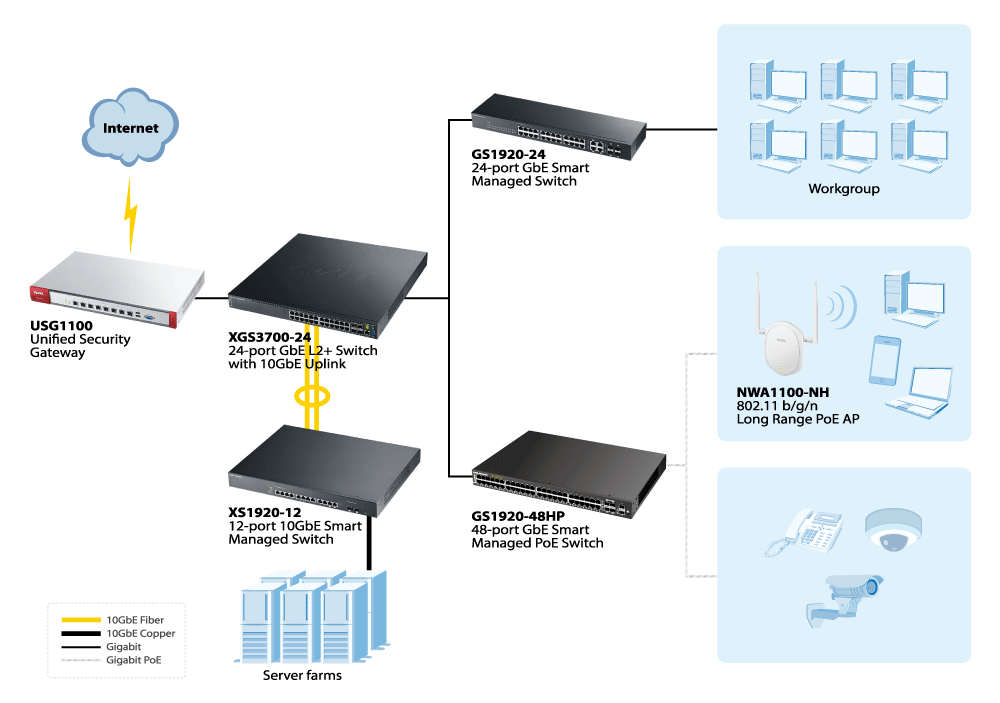

Ideal for SMB
Upgrade to a 10GbE network by purchasing only one switch
Flexible deployments by connecting to a core switch with 10GbE fiber while linking server with 10GbE copper
Standard Compliance
IEEE 802.3z 1000BASE-X
IEEE 802.3ab 1000BASE-T Ethernet
IEEE 802.3an 10G BASE-T Ethernet
IEEE 802.3ae 10 Gbit/s Ethernet over fiber
IEEE 802.3az EEE
IEEE 802.3x flow control
IEEE 802.3ad LACP aggregation
IEEE 802.1AB LLDP/LLDP-MED
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1Q VLAN Tagging
IEEE 802.1p Class of Service (CoS) Prioritization
IEEE 802.1X port authentication
Resilience and Availability
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
IEEE 802.3ad LACP
Loop guard
ErrDisable recovery
MRSTP (ZyXEL proprietary)
Dual configuration files
Dual images
Traffic Control
802.1Q static VLANs/dynamic VLANs: 1 K/4 K
Port-based VLAN
Protocol-based VLAN
IP subnet-based VLAN
MAC-based VLAN
Private VLAN
Voice VLAN
VLAN ingress filtering
LACP algorithm of source/destination MAC/IP
GVRP
L2PT
Security
802.1X
Port security
Layer 2 MAC filtering
Layer 3 IP filtering
Layer 4 TCP/UDP socket filtering
Static MAC forwarding
Multiple RADIUS servers
Multiple TACACS+ servers
802.1x VLAN and 802.1p assignment by RADIUS
Login authentication by RADIUS
Login authentication by TACACS+
TACACS+ accounting
Authorization on RADIUS
Authorization on TACACS+
SSL
MAC freeze
DHCP snooping
ARP inspection
Static IP-MAC-Port binding
Policy-based security filtering
Port isolation
IP source guard
MAC search
Guest VLAN
ACL packet filtering (IPv4/IPv6)
CPU protection
Interface related trap enable/disable (by port)
Quality of Service (QoS)
No. of hardware queues per port: 8
802.1p queuing method: SPQ, WRR, WFQ
Storm control: broadcast, multicast, unknown unicast (DLF)
Port-based rate limiting (ingress/egress)
Rate limiting per IP/TCP/UDP per port
Policy-based rate limiting
802.3x flow control
802.1p Class of Service (SPQ, WFQ, SPQ/WFQ combination capable)
DiffServ (DSCP)
Layer 2 Multicast
L2 multicast
IGMP snooping (v1, v2, v3)
IGMP snooping fast leave
Configurable IGMP snooping timer and priority
IGMP snooping statistics
IGMP throttling
MVR support
IGMP filtering
IGMP snooping immediate leave
IGMP proxy mode & snooping mode selection
MLD snooping
Manageability
SNMP v1, v2c, v3
SNMP trap group
RMON (1, 2, 3, 9)
ICMP echo/echo reply
Syslog
IEEE 802.1AB LLDP
IEEE 802.1AB LLDP-MED
IPv6 Management
IPv6 over Ethernet (RFC 2464)
IPv6 addressing architecture (RFC 4291)
Dual stack (RFC 4213)
ICMPv6 (RFC 4443)
Path MTU (RFC 1981)
Minimum path MTU size of 1280 (RFC 5095)
Encapsulation for maximum PMTU of 1500
Neighbor discovery (RFC 4861)
DHCPv6 relay
Device Management
ZyXEL iStackingTM
Web interface
Management through SNMP
Remote firmware upgrade by Web
Configuration saving and retrieving
Configure clone
DHCP relay per VLAN
DHCP client
Daylight saving
NTP
Port mirroring
MIB
ZyXEL private common MIB
RFC 1066 TCP/IP-based MIB
RFC 1213, 1157 SNMPv2c/v3 MIB
RFC 1493 bridge MIB
RFC 1643 Ethernet MIB
RFC 1757 RMON Group 1, 2, 3, 9
RFC 2011, 2012, 2013 SNMPv2 MIB
RFC 2233 SMIv2 MIB
RFC 2358 Ethernet-like MIB
RFC 2674 bridge MIB extension
RFC 2819, 2925 remote management MIB
RFC 4022 management information base for transmission control protocol
RFC 4113 management information base for user datagram protocol
RFC 4292 IP forwarding table MIB
RFC 4293 Management Information Base (MIB) for IP
Certifications
Safety
LVD
BSMI
EMC
FCC Part 15 (Class A)
CE EMC (Class A)
BSMI ENC
RoHS
Level A
ZyXEL One Network
ZON Utility
Discovery of ZyXEL switches, APs and gateways
Centralized and batch configurations
IP configuration
IP renew
Device reboot
Device locating
Web GUI access
Firmware upgrade
Password configuration
One-click quick association with ZyXEL AP Configurator (ZAC)
Smart Connect
Discover neighboring devices
One-click remote management access to the neighboring ZyXEL devices
