| Model |

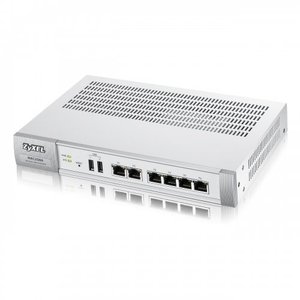

NXC 2500 |
| Product name |
 |
| Port Density |
| 10/100/1000 Mbps LAN ports |
6 |
| USB Port |
2 |
| Performance |
| Throughput (Gbps) |
1 |
| Managed AP number (default/max.) |
8/64* |
| Fanless |
Yes |
| WLAN Features |
| Wireless security (WPA/WPA2-PSK, Enterprise) |
Yes |
| Dynamic channel selection |
Yes |
| Client RSSI threshold |
Yes |
| Wireless multicast setting |
Yes |
| Rogue AP detection |
Yes |
| AP load balancing |
Yes |
| AP planning and site-survey |
Yes (AP planning and coverage detection) |
| ZyMESH |
Licensed service |
| Band select (Band steering) |
Yes |
| Client signal threshold |
Yes |
| Auto healing |
Yes |
| Security Features |
| IEEE 802.1X |
Yes |
| Web authentication |
Yes |
| MAC filtering |
Yes |
| RADIUS authentication |
Yes |
| Microsoft AD authentication |
Yes |
| LDAP authentication |
Yes |
| Embedded RADIUS server |
Yes (512 user) |
| Rogue AP detection |
Yes |
| Identity-based user security management |
Yes |
| Wireless intrusion detection |
Rogue AP detection and containment |
| Control and Provisioning |
| Managed AP discovery |
Broadcast/DHCP Option/DNS/Manual |
| CAPWAP |
Yes |
| AP data forwarding mode support |
Distributed (local bridge) and Centralized (data tunnel) |
| Management interface |
HTTP/HTTPS/Telnet/SSH/SNMP |
| Output power control |
Yes |
| Dynamic channel assignment |
Yes |
| Network |
| VLANs |
Yes |
| DHCP client |
Yes |
| DHCP relay, server |
Yes |
| NAT |
Yes |
| Static routing |
256 |
| Policy routing |
256 |
| Access Control |
| MAC filter list |
Yes |
| MAC authentication |
Internal and external RADIUS |
| Guest account generator |
Yes (512 user) |
| Customizable web login portal |
Yes |
| QoS |
| WMM/power save |
Yes |
| DiffServ marking |
Yes |
| AP load balancing |
Yes |
| Management Features |
| CLI with SSH |
Yes |
| Web UI with SSL |
Yes |
| SNMP |
v1, v2c, v3 |
| Multi-level administration roles |
Admin, guest operator |
| User/Application management |
| Authentication |
RADIUS/Microsoft AD/LDAP/Local |
| Local user database |
Yes (512) |
| User/group policy |
Yes |
| Captive portal |
Yes |
| External portal page |
Yes |
| Page upload |
Yes |
| Other |
| System diagnostic tool |
Yes |
| ZyXEL Wireless Optimizer |
Supported |
| Certification |
| EMC |
- FCC Part 15B
- CE EN55022, EN55024
- ERP Lot 6
- C-tick AS/NZSCISPR22
- BSMI CNS13438
|
| Safety |
- LVD EN60950-1:A12
- BSMI CNS14336
|
| Power Requirement |
| Power supply |
12VDC, 100~240VAC |
| Physical Specifications |
| Item |
Dimensions (WxDxH) (mm/in.) |
242.0 x 175.39 x 35.5/9.53 x 6.9 x 1.4 |
| Weight (kg/lb.) |
1.254/2.76 |
| Packing |
Dimensions (WxDxH) (mm/in.) |
395 x 238 x 101/15.55 x 9.37 x 3.98 |
| Weight (kg/lb.) |
2.49/5.49 |
| Environmental Specifications |
|
Operating Environment |
Temperature |
0℃ to 40℃/32°F to 104°F |
| Humidity |
5% to 95% (non-condensing) |
| Storage Environment |
Temperature |
-20℃ to 70℃/-4°F to 158°F |
| Humidity |
5% to 95% |
| MTBF (hrs) |
815,464 |
